Embedded Payment Element integration

Copy for LLMView as Markdown

PaymentElement provides a flexible way to embed payment UI directly into your own activity. Unlike the Hosted Payment Page which presents a full-screen payment flow, PaymentElement returns a composable that you can place anywhere in your layout.

While PaymentElement uses Jetpack Compose internally for rendering, you don't need a Compose-based app to use it. You can easily embed it in traditional XML layouts or Java-based projects by using ComposeView.

Make sure you add dependencies for the core payment module and any payment method modules you plan to support.

Keep in mind that:

The embedded element uses Jetpack Compose for rendering internally.
Works with traditional XML layouts, Java code, and Compose-based apps.
The element's height updates automatically based on content.
You maintain full control over the host activity and navigation.

How it works

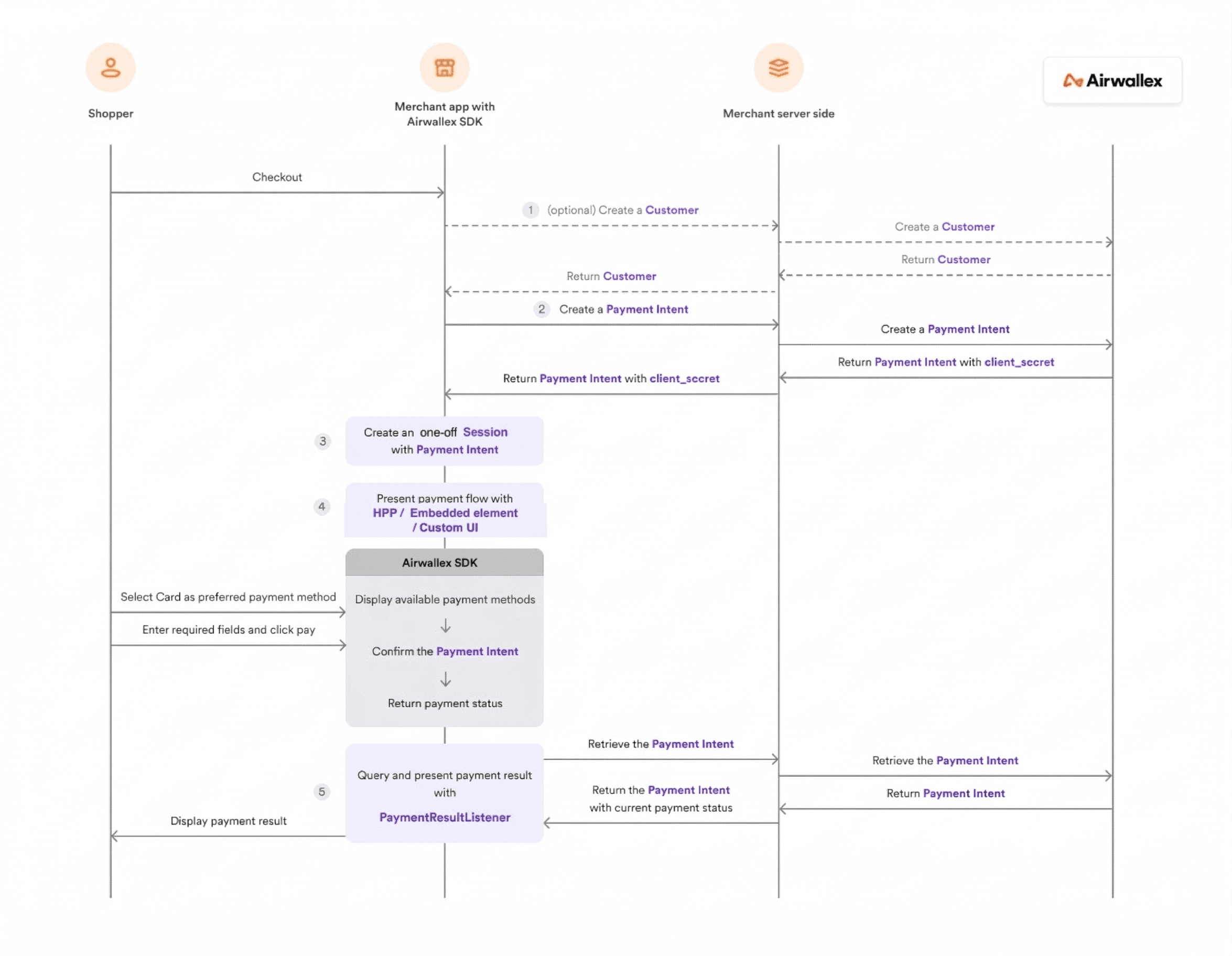

The diagram below depicts the integration flow for a card payment.

Card one-off integration flow

Prepare payment session

Before creating the embedded element, you need to create a payment session. See Prepare payment session for details on setting up the environment, creating a customer, payment intent, and payment session.

Add Compose dependencies (for XML/Java projects)

If you're using traditional XML layouts or Java, add these Compose dependencies to use ComposeView:

text

1dependencies {
2    // Required for ComposeView
3    implementation 'androidx.compose.ui:ui:1.5.0'
4    implementation 'androidx.activity:activity-compose:1.7.2'
5
6    // Airwallex SDK
7    implementation 'io.github.airwallex:payment:6.6.1'
8    // ... other payment method modules
9}

If your project already uses Jetpack Compose, you can skip this step as you already have the necessary dependencies.

Create embedded payment sheet

Display a list of available payment methods inside your own view hierarchy.

The Payment Sheet mode supports multiple payment methods including cards, Google Pay, WeChat Pay, and redirect-based methods.

Kotlin example

Kotlin

1import androidx.activity.ComponentActivity
2import androidx.lifecycle.lifecycleScope
3import com.airwallex.android.core.Airwallex
4import com.airwallex.android.core.AirwallexPaymentSession
5import com.airwallex.android.core.AirwallexPaymentStatus
6import com.airwallex.android.core.PaymentMethodsLayoutType
7import com.airwallex.android.view.composables.PaymentElement
8import com.airwallex.android.view.composables.PaymentElementConfiguration
9import kotlinx.coroutines.launch
10
11class CheckoutActivity : ComponentActivity() {
12    private val airwallex: Airwallex by lazy { Airwallex(this) }
13
14    private fun setupPaymentElement() {
15        lifecycleScope.launch {
16            // Create session with PaymentIntent
17            val session = AirwallexPaymentSession.Builder(
18                paymentIntent = paymentIntent,
19                countryCode = "US"
20            ).build()
21
22            // Configure payment sheet
23            val configuration = PaymentElementConfiguration.PaymentSheet(
24                layout = PaymentMethodsLayoutType.TAB,
25                googlePayButton = GooglePayButton(showsAsPrimaryButton = true)
26                // Other optional parameters (checkoutButton, appearance) are explained in Configuration options below
27            )
28
29            // Create PaymentElement
30            val result = PaymentElement.create(
31                session = session,
32                airwallex = airwallex,
33                configuration = configuration,
34                onLoadingStateChanged = { isLoading ->
35                    // Show or hide loading indicator
36                },
37                onPaymentResult = { status ->
38                    handlePaymentResult(status)
39                },
40                onError = { throwable ->
41                    showError(throwable.message)
42                }
43            )
44
45            result.onSuccess { paymentElement ->
46                // Render in ComposeView
47                binding.composeView.setContent {
48                    paymentElement.Content()
49                }
50            }.onFailure { throwable ->
51                showError(throwable.message)
52            }
53        }
54    }
55
56    private fun handlePaymentResult(status: AirwallexPaymentStatus) {
57        when (status) {
58            is AirwallexPaymentStatus.Success -> {
59                // Payment successful
60                showSuccess(status.paymentIntentId)
61            }
62            is AirwallexPaymentStatus.Failure -> {
63                // Payment failed
64                showError(status.exception.message)
65            }
66            is AirwallexPaymentStatus.Cancel -> {
67                // Payment cancelled by user
68                showCancelled()
69            }
70            is AirwallexPaymentStatus.InProgress -> {
71                // Payment in progress
72            }
73        }
74    }
75}

For additional configuration options like appearance, see Configuration options below.

Java example

Java projects can use PaymentElement with traditional XML layouts by rendering it in a ComposeView:

Java

1import com.airwallex.android.view.composables.PaymentElement;
2import com.airwallex.android.view.composables.PaymentElementCallback;
3import com.airwallex.android.view.composables.PaymentElementConfiguration;
4import com.airwallex.android.view.PaymentFlowListener;
5import com.airwallex.android.core.PaymentMethodsLayoutType;
6import com.airwallex.android.core.Appearance;
7import androidx.compose.ui.platform.ComposeView;
8
9// Configure payment sheet with all optional parameters
10PaymentElementConfiguration configuration =
11    new PaymentElementConfiguration.PaymentSheet(
12        PaymentMethodsLayoutType.TAB,
13        new PaymentElementConfiguration.GooglePayButton(
14            true,  // showsAsPrimaryButton
15            null   // buttonType (optional)
16        ),
17        new PaymentElementConfiguration.CheckoutButton("Pay Now"),
18        new Appearance(
19            0xFF612FFF,  // themeColor
20            null         // isDarkTheme (null = follow system)
21        )
22    );
23
24// Create payment flow listener
25PaymentFlowListener listener = new PaymentFlowListener() {
26    @Override
27    public void onPaymentResult(@NonNull AirwallexPaymentStatus status) {
28        if (status instanceof AirwallexPaymentStatus.Success) {
29            showSuccess(((AirwallexPaymentStatus.Success) status).getPaymentIntentId());
30        } else if (status instanceof AirwallexPaymentStatus.Failure) {
31            showError(((AirwallexPaymentStatus.Failure) status).getException().getMessage());
32        } else if (status instanceof AirwallexPaymentStatus.Cancel) {
33            showCancelled();
34        }
35    }
36
37    @Override
38    public void onLoadingStateChanged(boolean isLoading, @NonNull Context context) {
39        // Show or hide loading indicator
40    }
41
42    @Override
43    public void onError(@NonNull Throwable exception, @NonNull Context context) {
44        showError(exception.getMessage());
45    }
46};
47
48// Create and render PaymentElement
49PaymentElement.create(
50    session,
51    airwallex,
52    configuration,
53    listener,
54    new PaymentElementCallback() {
55        @Override
56        public void onSuccess(@NonNull PaymentElement element) {
57            // Render in ComposeView
58            element.renderIn(binding.composeView);
59        }
60
61        @Override
62        public void onFailure(@NonNull Throwable error) {
63            showError(error.getMessage());
64        }
65    }
66);

binding.composeView refers to the ComposeView you added in your XML layout. You can also use findViewById<ComposeView>(R.id.composeView) if not using view binding.

Create embedded card element

Display only the card payment form for adding new cards.

Kotlin example

Kotlin

1// Configure card-only element
2val configuration = PaymentElementConfiguration.Card(
3    supportedCardBrands = listOf(
4        AirwallexSupportedCard.VISA,
5        AirwallexSupportedCard.MASTERCARD,
6        AirwallexSupportedCard.UNIONPAY
7    )
8)
9
10// Create PaymentElement
11val result = PaymentElement.create(
12    session = session,
13    airwallex = airwallex,
14    configuration = configuration,
15    onLoadingStateChanged = { isLoading ->
16        // Show or hide loading indicator
17    },
18    onPaymentResult = { status ->
19        handlePaymentResult(status)
20    },
21    onError = { throwable ->
22        showError(throwable.message)
23    }
24)
25
26result.onSuccess { paymentElement ->
27    binding.composeView.setContent {
28        paymentElement.Content()
29    }
30}

Java example

Java

1import com.airwallex.android.core.AirwallexSupportedCard;
2import com.airwallex.android.core.Appearance;
3import com.airwallex.android.view.composables.PaymentElementConfiguration;
4import java.util.Arrays;
5
6// Configure card-only element with all optional parameters
7PaymentElementConfiguration configuration =
8    new PaymentElementConfiguration.Card(
9        Arrays.asList(
10            AirwallexSupportedCard.VISA,
11            AirwallexSupportedCard.MASTERCARD,
12            AirwallexSupportedCard.UNIONPAY
13        ),
14        new PaymentElementConfiguration.CheckoutButton("Pay Now"),  // Custom checkout button title
15        new Appearance(
16            0xFF612FFF,  // themeColor
17            null         // isDarkTheme (null = follow system)
18        )
19    );
20
21// Create and render (same as payment sheet example above)
22PaymentElement.create(session, airwallex, configuration, listener, callback);

Configuration options

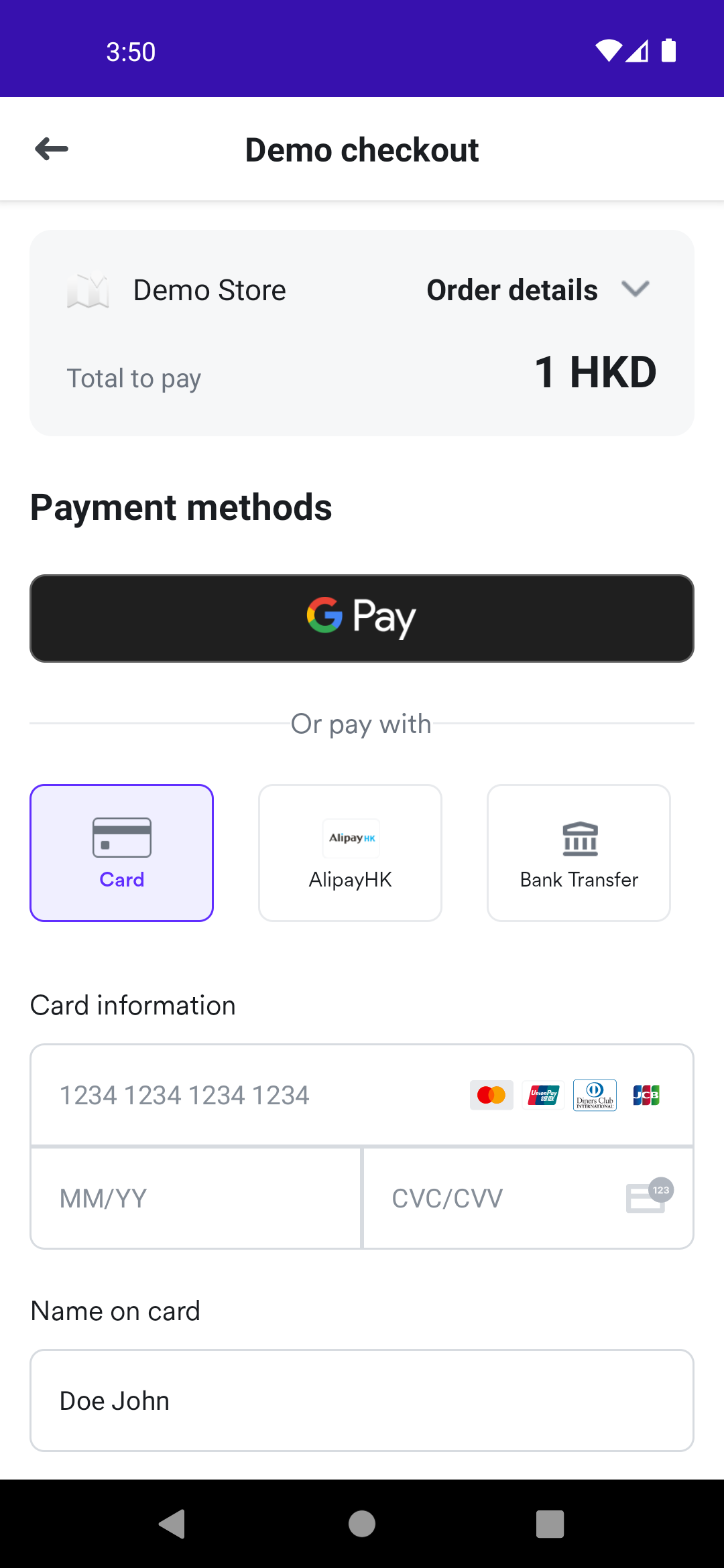

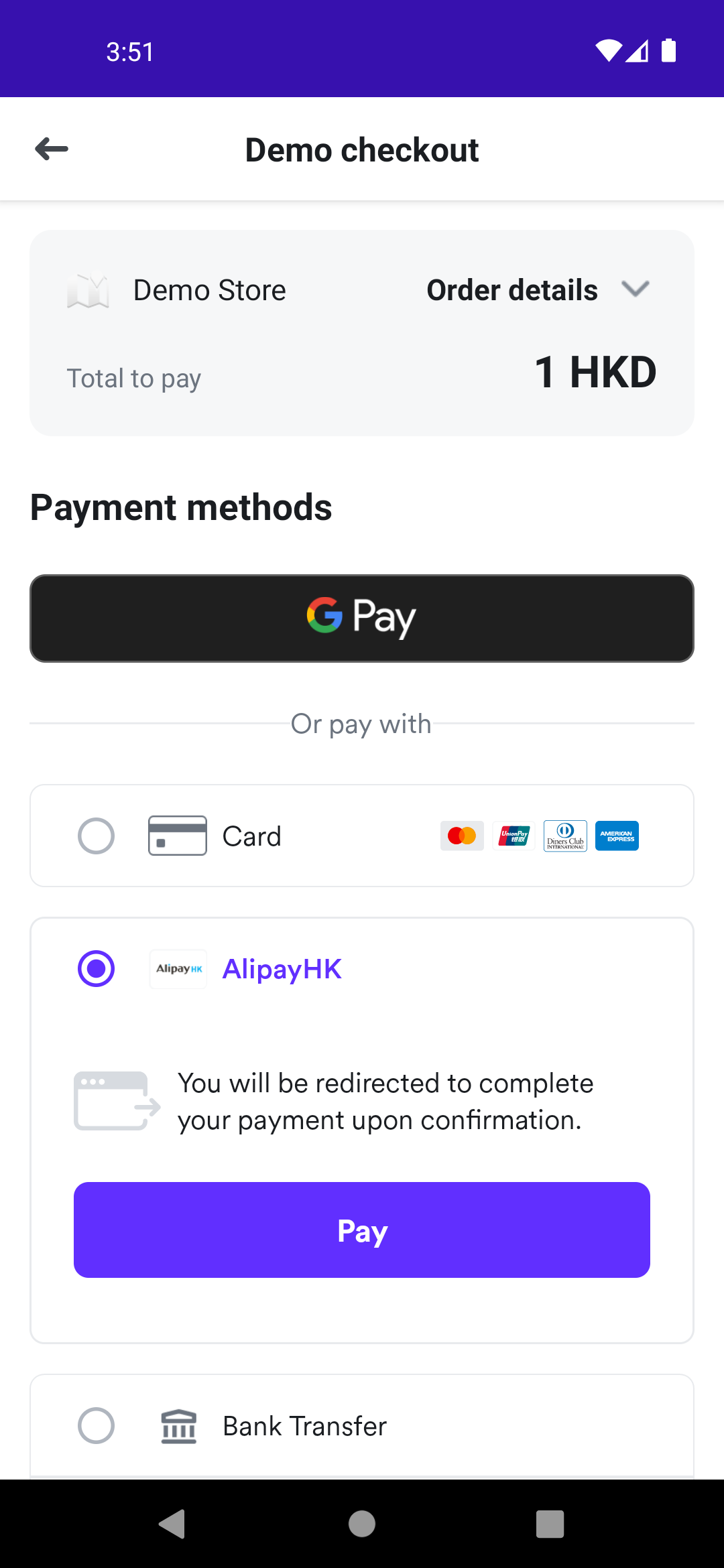

We provide tab and accordion styles for our embedded payment sheet:

Tab	Accordion

Payment Sheet configuration

Use PaymentElementConfiguration.PaymentSheet to display multiple payment methods:

Property	Type	Description	Default
`layout`	`PaymentMethodsLayoutType`	`.TAB` or `.ACCORDION` layout style	`.TAB`
`googlePayButton`	`GooglePayButton`	Configure Google Pay button appearance	`GooglePayButton()`
`checkoutButton`	`CheckoutButton`	Customize checkout button text	`CheckoutButton()`
`appearance`	`Appearance?`	Customize theme colors and dark mode	`null`

GooglePayButton:

Property	Type	Description	Default
`showsAsPrimaryButton`	`Boolean`	Display Google Pay as a prominent button vs. in the payment method list	`true`
`buttonType`	`GooglePayButtonType?`	Button type (for example, `STANDARD`, `BUY`, `DONATE`)	`null`

Card Element configuration

Use PaymentElementConfiguration.Card to display only the card form:

Property	Type	Description	Default
`supportedCardBrands`	`List<AirwallexSupportedCard>`	Accepted card brands	All available brands
`checkoutButton`	`CheckoutButton`	Customize checkout button text	`CheckoutButton()`
`appearance`	`Appearance?`	Customize theme colors and dark mode	`null`

Supported card brands include: VISA, MASTERCARD, AMEX, DISCOVER, JCB, DINERSCLUB, UNIONPAY.

Shared configuration objects

CheckoutButton:

Property	Type	Description	Default
`title`	`String?`	Custom text for the checkout button (for example, "Pay Now", "Complete Purchase"). If `null`, defaults to "Pay" or "Confirm"	`null`

Appearance:

Property	Type	Description	Default
`themeColor`	`Int?`	Primary brand color in ARGB format (for example, `0xFF612FFF`)	`null`
`isDarkTheme`	`Boolean?`	`true` (force dark), `false` (force light), `null` (follow system)	`null`

Session configuration

When creating AirwallexPaymentSession, you can filter which payment methods are available:

Kotlin

1import com.airwallex.android.core.AirwallexPaymentSession
2
3val session = AirwallexPaymentSession.Builder(
4    paymentIntent = paymentIntent,
5    countryCode = "US"
6)
7    .setPaymentMethods(
8        listOf("card")  // Show only card payment
9    )
10    .build()

You can also customize the payment methods and their order:

Kotlin

1val session = AirwallexPaymentSession.Builder(
2    paymentIntent = paymentIntent,
3    countryCode = "US"
4)
5    .setPaymentMethods(
6        listOf("paypal", "card", "googlepay", "fps", "alipayhk")
7    )
8    .build()

Available payment method names can be found in the Airwallex API documentation API.

Handle payment callbacks

The PaymentFlowListener interface provides callbacks for payment lifecycle events:

onPaymentResult

Called when a payment completes with one of the following statuses:

AirwallexPaymentStatus.Success - Payment completed successfully
AirwallexPaymentStatus.Failure - Payment failed (includes exception)
AirwallexPaymentStatus.Cancel - User cancelled the payment
AirwallexPaymentStatus.InProgress - Payment is being processed

onLoadingStateChanged

Called when the loading state changes. Use this to show or hide your own loading indicator.

onError

Called when an error occurs during element creation or payment processing.

Layout integration

For XML layouts (traditional Android projects)

Add a ComposeView to your XML layout. This allows you to embed the Compose-based payment element in traditional Android views:

xml

1<?xml version="1.0" encoding="utf-8"?>
2<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
3    android:layout_width="match_parent"
4    android:layout_height="match_parent"
5    android:orientation="vertical"
6    android:padding="16dp">
7
8    <TextView
9        android:layout_width="wrap_content"
10        android:layout_height="wrap_content"
11        android:text="Payment Methods"
12        android:textSize="20sp"
13        android:textStyle="bold" />
14
15    <androidx.compose.ui.platform.ComposeView
16        android:id="@+id/composeView"
17        android:layout_width="match_parent"
18        android:layout_height="wrap_content"
19        android:layout_marginTop="16dp" />
20
21</LinearLayout>

Then in your Activity or Fragment:

Kotlin

1// In your Activity
2val composeView = findViewById<ComposeView>(R.id.composeView)
3composeView.setContent {
4    paymentElement.Content()
5}

For Compose-based projects

If your entire app uses Jetpack Compose, you can directly use the payment element in your composables:

Kotlin

1@Composable
2fun CheckoutScreen() {
3    Column(
4        modifier = Modifier
5            .fillMaxSize()
6            .padding(16.dp)
7    ) {
8        Text(
9            text = "Payment Methods",
10            style = MaterialTheme.typography.h5
11        )
12
13        Spacer(modifier = Modifier.height(16.dp))
14
15        // Use PaymentElement directly
16        paymentElement.Content()
17    }
18}

Was this page helpful?
