Authorize existing customers

To allow existing Airwallex customers to connect their accounts to your application, implement the OAuth authorization flow described in this document.

Use this flow when your users already have Airwallex Business Accounts and want to connect them to your platform. This enables your application to access their Airwallex account data and perform operations on their behalf.

Before you begin

Before implementing OAuth, ensure you have:

• Client ID and client secret credentials from Airwallex. Contact [email protected] to request credentials.
• Redirect URI whitelisted with Airwallex. Contact your partnerships manager to whitelist additional URIs.
• Required scopes determined for your integration. See Scopes API for available options.

Create the authorization flow

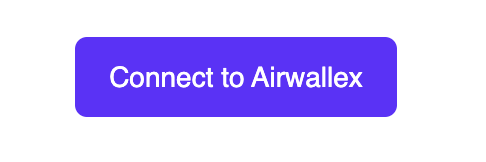

To enable users to authorize your application, implement a "Connect to Airwallex" button that initiates the OAuth flow.

1. Add a "Connect to Airwallex" button to your user interface.

2. Configure the button to redirect users to the Airwallex OAuth authorization URL with your application parameters:

   text

   1https://demo.airwallex.com/oauth/authorize?response_type=code&client_id=<YOUR_CLIENT_ID>&redirect_uri=<YOUR_REDIRECT_URI>&state=<YOUR_STATE>&scope=<REQUESTED_SCOPE_1>+<REQUESTED_SCOPE_2>

   Replace placeholders with your actual values. The state parameter prevents CSRF attacks - generate a unique value for each authorization request and validate it on callback.



3. Direct users through the Airwallex login and authorization process.

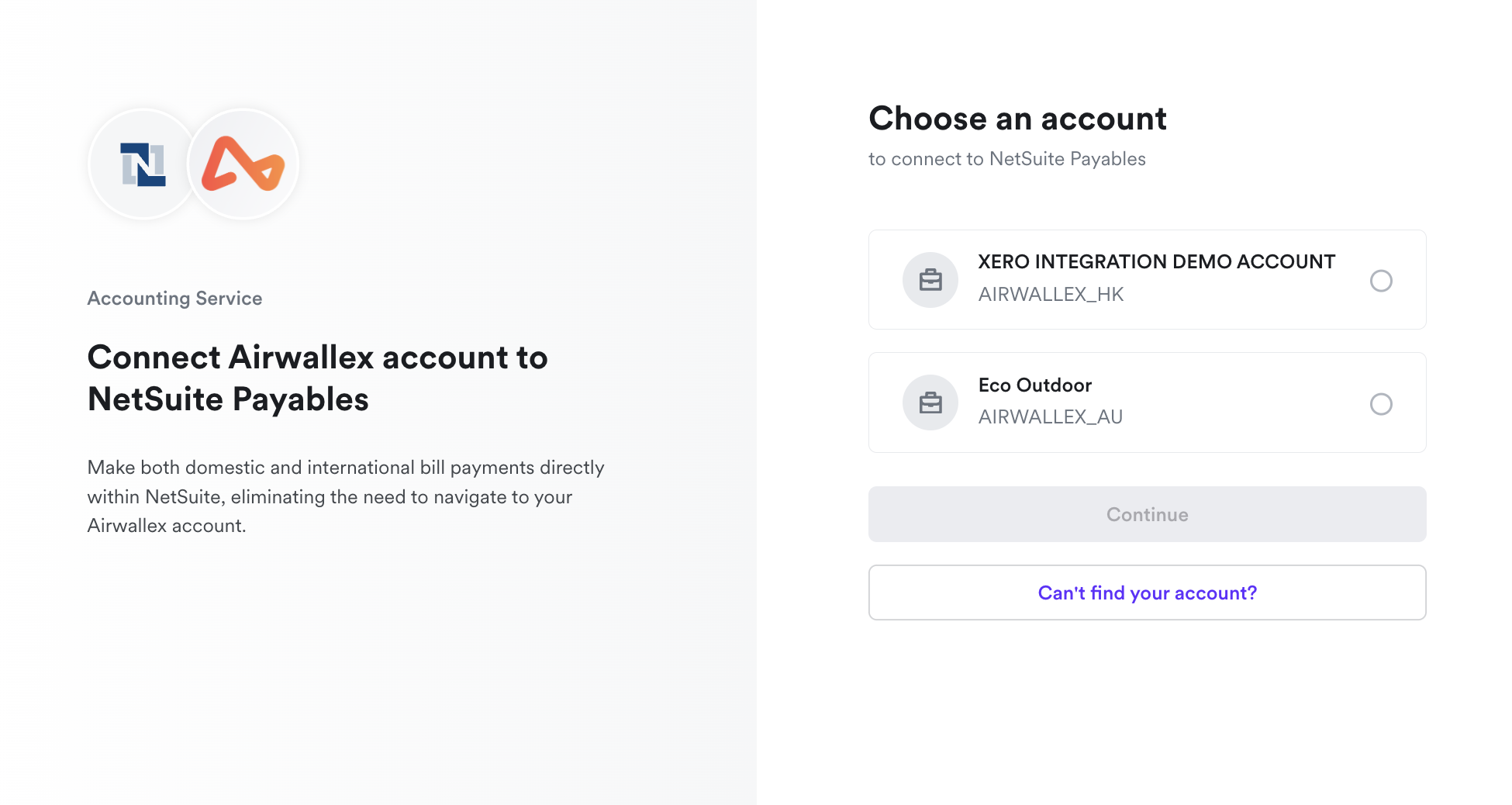

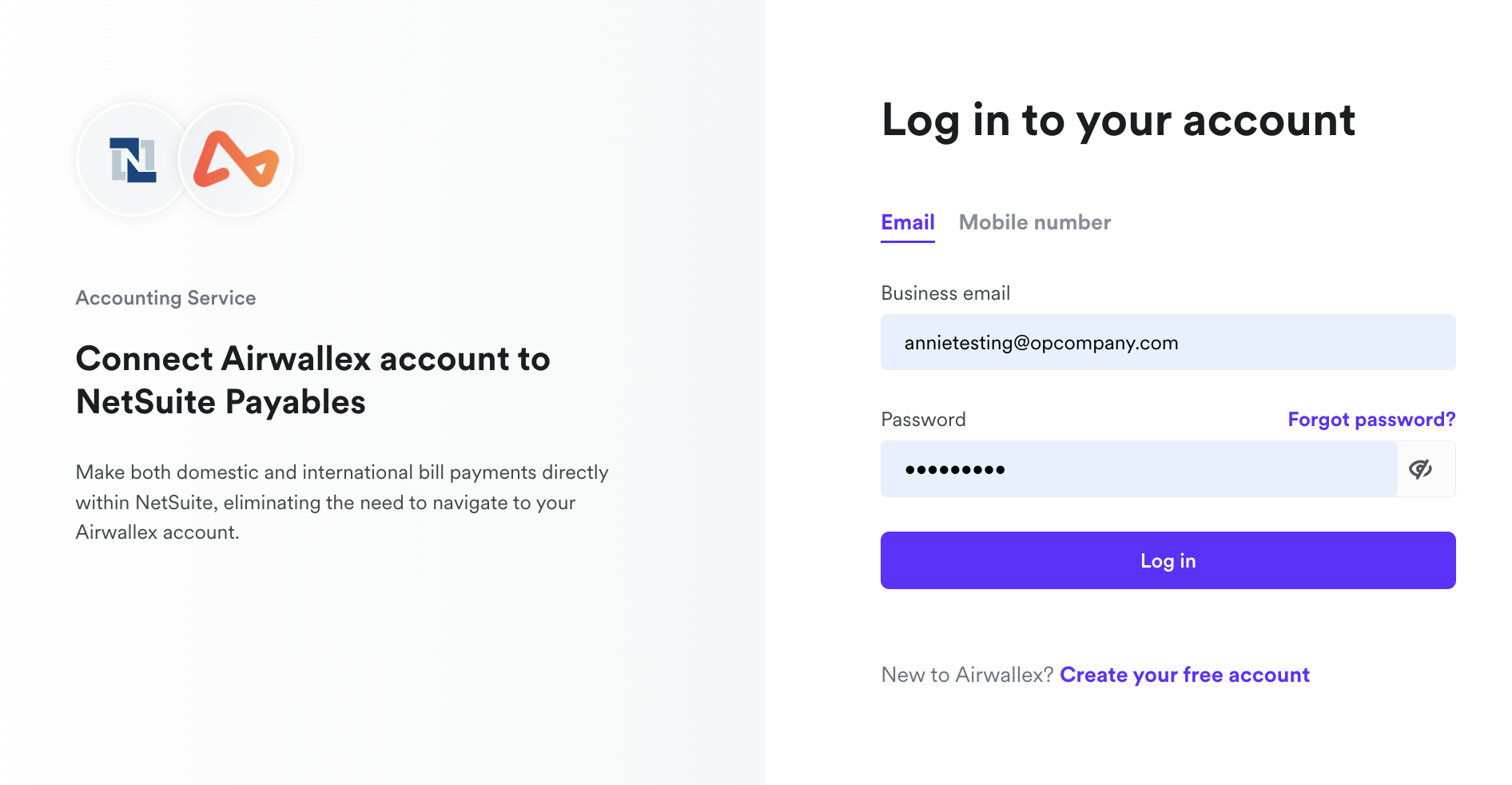

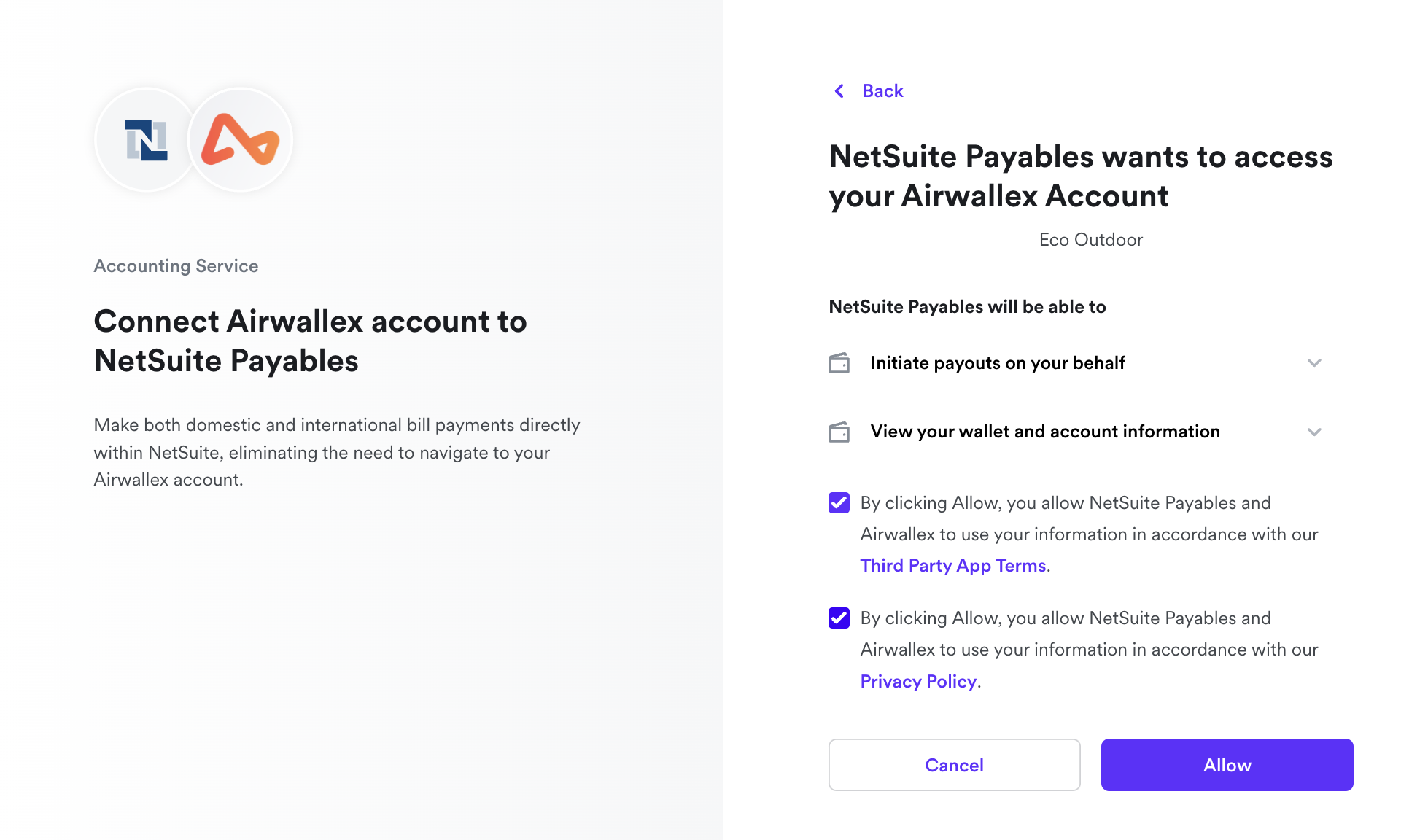

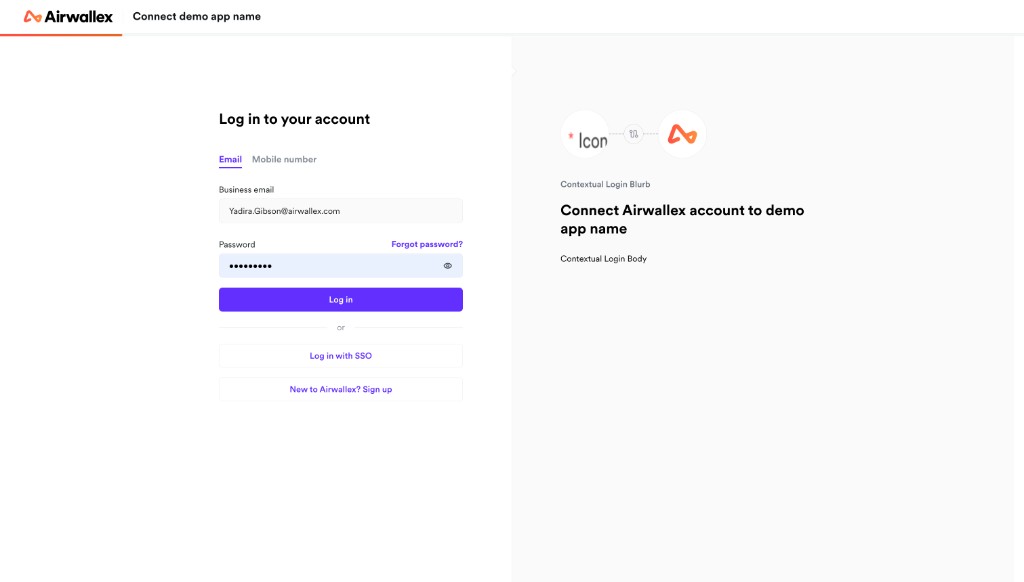

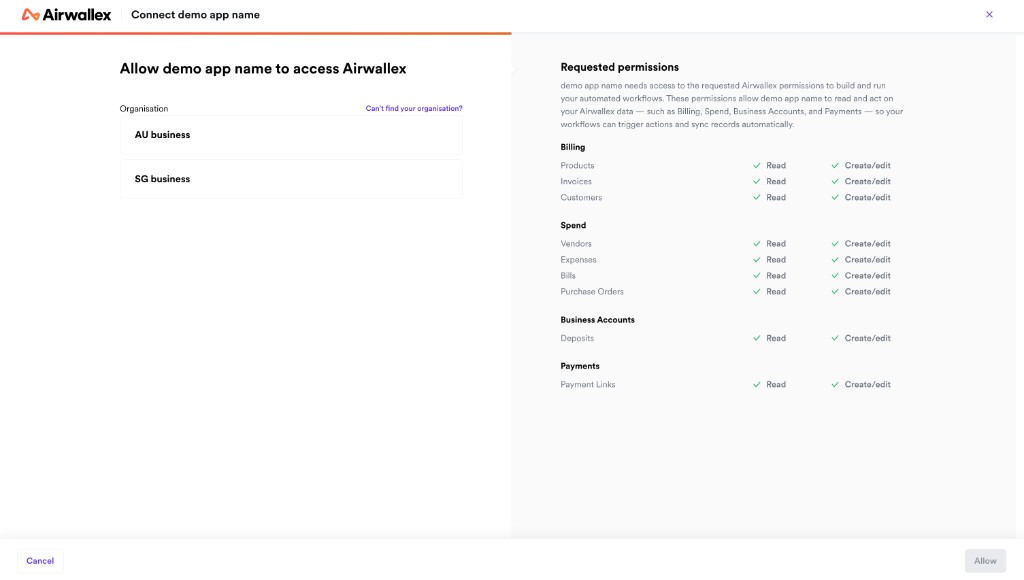

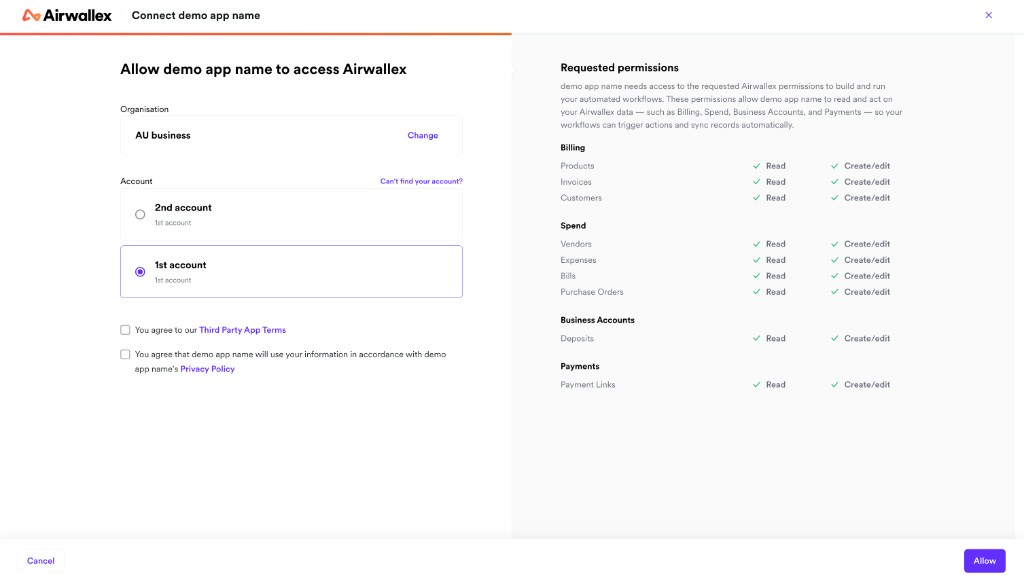

Users will be directed to log in to their Airwallex account, choose the account they wish to connect, and review the permissions your application is requesting.

After authorization, Airwallex redirects users back to your redirect URI with an authorization code and state parameter:

1https://<YOUR_REDIRECT_URI>/?code=<AUTH_CODE>&state=<YOUR_STATE>

If the user declines authorization, Airwallex redirects back with an error parameter instead:

1https://<YOUR_REDIRECT_URI>/?error=access_denied&state=<YOUR_STATE>

Exchange authorization code for tokens

To obtain access and refresh tokens, exchange the authorization code with the Airwallex OAuth server.

1. Extract the authorization code from the redirect URL query parameter.

2. Validate that the returned state parameter matches the value you generated in step 2 above.

3. Send a POST request to the token endpoint with your credentials and the authorization code:

   Shell

   1curl -X POST https://api-demo.airwallex.com/oauth/token \
   2  -H 'Content-Type: application/x-www-form-urlencoded' \
   3  --data-urlencode 'client_id={{YOUR_CLIENT_ID}}' \
   4  --data-urlencode 'client_secret={{YOUR_CLIENT_SECRET}}' \
   5  --data-urlencode 'code={{AUTH_CODE}}' \
   6  --data-urlencode 'grant_type=authorization_code' \
   7  --data-urlencode 'redirect_uri={{YOUR_REDIRECT_URI}}'

   Note that <YOUR_REDIRECT_URI> must match the one used to obtain the authorization code.

4. Store the refresh token securely in your database and use the access token for API requests.

If the authorization code is valid, you will receive a response containing tokens:

1{
2  "access_token": "eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJ0b20iLCJyb2xlcyI6WyJ1c2VyIl0sImlhdCI6MTQ4ODQxNTI1NywiZXhwIjoxNDg4NDE1MjY3fQ.UHqau03y5kEk5lFbTp7J4a-U6LXsfxIVNEsux85hj-Q",
3  "account_id": "acct_AcFEnD6CMgOvuFYLgFCw9A",
4  "expires_in": 300,
5  "refresh_token": "TIg7rEHqjxP3WOkGGS2S-J1GxQnZiAe8VCF7r6G5JMJSC_0l9qU7nyHVPjaQd298H",
6  "refresh_token_expires_in": 7776000,
7  "scope": "r:awx_action:balances_view r:awx_action:settings.account_details_view r:awx_action:global_accounts_view",
8  "token_type": "bearer"
9}

The response includes:

• access_token: Short-lived token (valid for 5 minutes) for API requests
• refresh_token: Long-lived token (valid for 90 days) for obtaining new access tokens
• account_id: The connected Airwallex account ID
• expires_in: Access token expiration time in seconds
• refresh_token_expires_in: Refresh token expiration time in seconds

Check token validity

To avoid unnecessary API calls with expired tokens, check token validity before making requests:

Option 1: Decode the JWT access token

1const jwt = require('jsonwebtoken');
2const decoded = jwt.decode(accessToken);
3const isExpired = decoded.exp * 1000 < Date.now();

Option 2: Track expires_in from the token response

1const tokenExpiresAt = Date.now() + (expiresIn * 1000);
2const isExpired = Date.now() >= tokenExpiresAt;

Refresh the access token before it expires if you need continued access.

To use the access token (which is <YOUR_BEARER_TOKEN> in examples), include it in the Authorization header of API requests:

1curl -G https://api-demo.airwallex.com/api/v1/account \
2  -H 'Authorization: Bearer {{ACCESS_TOKEN}}'

Refresh access tokens

To maintain ongoing access to the connected Airwallex account, regularly refresh access tokens before they expire.

1. Send a POST request to the token endpoint with your refresh token:

   Shell

   1curl -X POST https://api-demo.airwallex.com/oauth/token \
   2  -H 'Content-Type: application/x-www-form-urlencoded' \
   3  --data-urlencode 'client_id={{YOUR_CLIENT_ID}}' \
   4  --data-urlencode 'client_secret={{YOUR_CLIENT_SECRET}}' \
   5  --data-urlencode 'grant_type=refresh_token' \
   6  --data-urlencode 'refresh_token={{REFRESH_TOKEN}}'

   Use the latest refresh token value from your previous call to /oauth/token.

2. Immediately store the new refresh token, replacing the previous one in your database.

3. Use the new access token for subsequent API requests.

The response contains new tokens:

1{
2  "access_token": "eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJ0b20iLCJyb2xlcyI6WyJ1c2VyIl0sImlhdCI6MTQ4ODQxNTI1NywiZXhwIjoxNDg4NDE1MjY3fQ.UHqau03y5kEk5lFbTp7J4a-U6LXsfxIVNEsux85h",
3  "account_id": "acct_AcFEnD6CMgOvuFYLgFCw9A",
4  "expires_in": 300,
5  "refresh_token": "i-IPN3DIkTfNJ3dSVy0ea-QOtMAt0eVdx5OccrD-MNFJcFeHBnyUQZA60IlIi-EAH",
6  "refresh_token_expires_in": 7776000,
7  "scope": "r:awx_action:balances_view r:awx_action:settings.account_details_view r:awx_action:global_accounts_view",
8  "token_type": "bearer"
9}

Token rotation

Refresh tokens are single-use and must be rotated properly. Each successful refresh request generates a new refresh token and invalidates the previous one. You must:

• Always store the new refresh token immediately after receiving it.
• Use only the latest refresh token for subsequent refresh requests.
• Do not reuse an old refresh token, even if stored in multiple locations or retried from failed requests.

Grace period for error recovery

The previous refresh token remains valid for 60 seconds after a new token is issued. This grace period exists only to handle network failures or timeout scenarios where you're unsure if the refresh succeeded. Do not rely on this grace period for normal operations.

Avoid concurrent refresh requests

Do not make multiple simultaneous refresh requests using the same refresh token. This can cause race conditions and token validation errors. Implement request queuing or locking in your application to ensure only one refresh request is in-flight at a time.

When tokens become invalid

Access tokens and refresh tokens may become invalid under the following circumstances:

• Expiration: Access tokens expire after 5 minutes; refresh tokens expire after 90 days. Always check the expires_in and refresh_token_expires_in values.
• User revocation: If a user disconnects your application in their Airwallex settings, all tokens are immediately invalidated.
• Admin role removal: If the user who granted consent loses admin permissions, token refresh will fail. See OAuth permissions and user roles for details.
• Token archival: Expired refresh tokens are archived after 90 days and cannot be recovered.

In all cases, you must prompt users to re-authorize your application through the authorization flow.

Best practices for token management

To maintain a valid connection:

• Proactively refresh tokens every 60-80 days, well before the 90-day expiration.
• Monitor refresh_token_expires_in values and alert your operations team when tokens approach expiration.
• Implement retry logic with exponential backoff for transient errors (500, 503).
• Do not retry 400-level errors with the same refresh token - these indicate permanent failures.
• Store tokens securely in a centralized database, not in multiple caches or application instances.

For detailed error handling and troubleshooting guidance, see Troubleshooting OAuth errors.

Next steps

Now that you've implemented OAuth authorization, complete your integration:

• Implement your use case using one of the integration guides (online payments, invoicing, bill payments, or bank feed).
• Set up webhook notifications to receive real-time updates about connected accounts.
• Test your integration thoroughly before going live.
